CONSTRUCTION

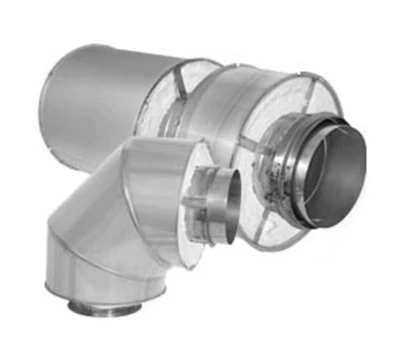

Available in sizes from 5″ to 36″ diameters, the CIX line offers double-wall configuration with a choice of 1″, 2″, 4″, or 3″ insulation and the CAX line offers a 1″ air insulated product. For premium corrosion resistance and durability, the inner flue is constructed from 0.035″ thick 304 or 316 Stainless Steel. This is coupled with a 0.024″ thick 304 Stainless Steel or Galvalume (Aluminum-zinc coated) steel outer casing. The CIX line features the highest-quality insulation, densely packed to ensure low heat loss and maximum draft.
DESIGNED WITH PERFORMANCE IN MIND

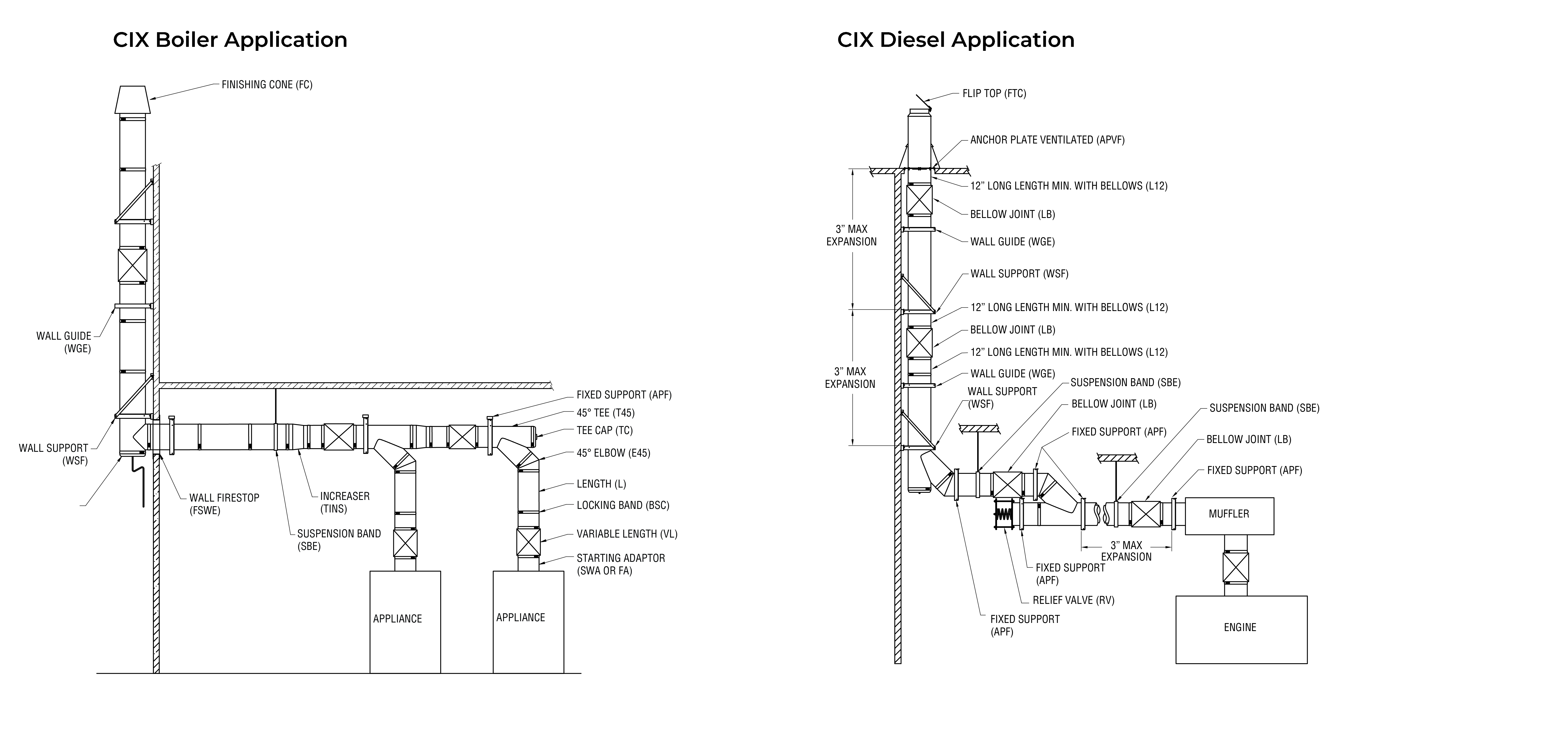

The Secure Stack Pro Series, Models SCL, CAX1, CIX1, CIX2, CIX4, and CIX3Z venting systems are designed to offer the ultimate in installation convenience and versatility for a variety of applications. Certified for commercial chimney and diesel exhaust applications, they are constructed of thick-gauge material for the inner pipe that provides a strong and rigid assembly. Featuring a self-centering flue extension design that significantly simplifies and accelerates the installation process.
